1 Ton AMH Beam Clamp with Shackle 3.10" to 9.40" Beam Flange Width

The right equipment. The right support. Fast.

In Stock / Ships Fast

Expert Support Available

Industrial-Grade Equipment

Freight Support Available

List Price $150.00 Your Cost $135.00

More Information
Manufacture Part Number	BCD-01
Brand	AMH
Estimated Ship Time	1-3 Business Days

Add a new review

Estimated Ship Time: 1-3 Business Days

We make equipment shipping fast, reliable, and hassle-free.

Ships directly from authorized warehouse locations
Nationwide freight shipping available
Shipment tracking is provided after order dispatch
Expedited shipping options available upon request

Stagelift coordinates every shipment carefully to ensure your equipment arrives safely, securely, and on time.

Product Overview

The easy way to install a fixed hoist mount or rigging point
Simple installation by hand, no tools required
Compact and portable low headroom design
Meets OSHA, ASME B30, NASA-STD-8719.9 and EU Directives: 98/37/EC

Product Resources

Technical Specification

SPECIFICATION (Inches & Lbs.)		(WLL) Capacity from Vertical				A" Adjustment	B" Max;	C"	D"	E"	F" Max	H"	Weight Lbs.
SPECIFICATION (Inches & Lbs.)		@ 0°	@ 15°	@ 30°	@ 45°	A" Adjustment	B" Max;	C"	D"	E"	F" Max	H"	Weight Lbs.
1t	BC-01	2,200	0	0	0	3.1 - 9.4	14.6	3.7	0.75	7.8	5.7	0.8	7.7
1t	BCD-01	2,200	1,800	1,500	1,100	3.1 - 9.4	14.6	3.7	0.75	8.6	7.8	1.7	9.0
2t	BC-02	4,400	0	0	0	3.1 - 9.4	14.6	4.0	0.75	7.8	5.7	0.8	9.9
2t	BCD-02	4,400	3,700	2,900	2,200	3.1 - 9.4	14.6	4.0	0.75	8.7	7.8	1.7	11.0
3t	BC-03	6,600	0	0	0	3.5 - 12.2	19.7	5.2	1.12	10.4	8.2	0.9	20.9
3t	BCD-03	6,600	5,500	4,400	3,300	3.5 - 12.2	19.7	5.2	1.12	10.2	11.0	2.4	22.4
5t	BC-05	11,000	0	0	0	3.5 - 12.2	19.7	5.6	1.41	10.4	8.2	0.9	24.2
5t	BCD-05	11,000	9,100	7,300	5,500	3.5 - 12.2	19.7	5.6	1.41	10.2	11.0	2.4	26.2
10t	RC-10	22,000	0	0	0	3.5 - 12.6	20.5	7.1	1.50	11.2	8.7	1.5	35.2
10t	BCD-10	22,000	18,300	14,500	11,000	3.5 - 12.6	20.5	7.1	1.50	12.0	13.0	3.6	40.5

Reviews

Write Your Own Review

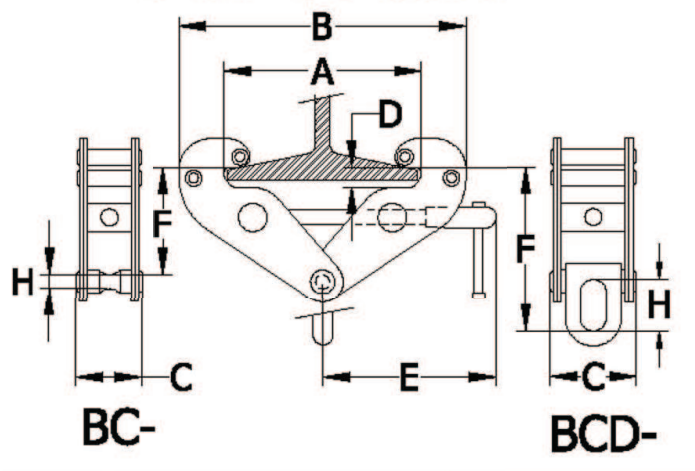

Dimension Guide

Dimension
